Appetite for dysfunction

Andrew ~~McCluskey~~ McMiddlin

2018-08-27

Intro

What and why?

Outline

WordPress
Property based testing
State machine testing
NixOps
dependent-map
servant to talk web
Putting it together

WordPress

31% of the web uses WordPress, from hobby blogs to the biggest news sites online.

— wordpress.org

Over 60 million people have chosen WordPress to power the place on the web they call “home”

— wordpress.org

Started in 2003 as a fork of b2, which was started in 2001
Uses PHP and MySQL
REST API using JSON (under specified)

Property based testing

Apply functions to randomly generated inputs and ensuring that desirable properties hold.

Example

-- Reverse is involutive
propReverse :: Property
propReverse =
  property $ do

-- Reverse is involutive
propReverse :: Property
propReverse =
  property $ do
    xs <- forAll $ Gen.list (Range.linear 0 100) Gen.alpha

-- Reverse is involutive
propReverse :: Property
propReverse =
  property $ do
    xs <- forAll $ Gen.list (Range.linear 0 100) Gen.alpha
    reverse (reverse xs) === xs

Shrinking

[ 'w','K','E','y','P','z','m','o','i','N','G','I','X','X'
, 'v','l','q','X','n'
]

['a','b']

State machine testing

State machines

State machine testing

Model application as a state machine
Generate inputs to transition between states
Execute inputs against real application
Update model to reflect expected state changes
At each step, check no invariants are broken

Example

WordPress example

Deploying with NixOps

Nix

Purely functional language for package management.

NixOS

The purely functional Linux distribution built on top of the Nix package manager.

NixOps

A tool for deploying NixOS machines.

WordPress specification

wpPackage = pkgs.fetchFromGitHub {
  owner = "WordPress";
  repo = "WordPress";
  rev = "4.9.7";
  sha256 = "1kxwk7mqhi9n...";
};

basicAuthPlugin = pkgs.stdenv.mkDerivation {








};

basicAuthPlugin = pkgs.stdenv.mkDerivation {
  name = "basic-auth-plugin";







};

basicAuthPlugin = pkgs.stdenv.mkDerivation {
  name = "basic-auth-plugin";
  src = pkgs.fetchurl {
    url = https://github.com/WP-API/Basic-Auth/...8.zip;
    sha256 = "b7f4fe0e6064040...";
  };



};

basicAuthPlugin = pkgs.stdenv.mkDerivation {
  name = "basic-auth-plugin";
  src = pkgs.fetchurl {
    url = https://github.com/WP-API/Basic-Auth/...8.zip;
    sha256 = "b7f4fe0e6064040...";
  };

  buildInputs = [ pkgs.unzip ];
  installPhase = "mkdir -p $out; cp -R * $out/";
};

twentySeventeen = pkgs.stdenv.mkDerivation {
  name = "theme-twenty-seventeen";
  src = pkgs.fetchurl {
    url = https://.../twentyseventeen.1.6.zip;
    sha256 = "0cch9bvap4r0775f...";
  };

  buildInputs = [ pkgs.unzip ];
  installPhase = "mkdir -p $out; cp -R * $out/";
};

services.mysql = {
  enable = true;
  package = pkgs.mysql;
  initialScript = ./init.sql;
};

services.httpd = {











};

services.httpd = {
  ...
  virtualHosts = [{
    hostName = "wordpress";







  }];
};

services.httpd = {
  ...
  virtualHosts = [{
    hostName = "wordpress";
    extraSubservices = [{
      ...
      serviceType = "wordpress";



    }];
  }];
};

services.httpd = {
  ...
  virtualHosts = [{
    hostName = "wordpress";
    extraSubservices = [{
      ...
      serviceType = "wordpress";
      package = wpPackage;


    }];
  }];
};

services.httpd = {
  ...
  virtualHosts = [{
    hostName = "wordpress";
    extraSubservices = [{
      ...
      serviceType = "wordpress";
      package = wpPackage;
      plugins = [ basicAuthPlugin ];
      themes = [ twentySeventeen ];
    }];
  }];
};

# HTTP, HTTPS, MySQL
networking.firewall.allowedTCPPorts = [ 80 443 3306 ];

Machine specification

{
  wordpress =
    { config, pkgs, ... }:





}

{
  wordpress =
    { config, pkgs, ... }:
    { deployment.targetEnv = "virtualbox";



    };
}

{
  wordpress =
    { config, pkgs, ... }:
    { deployment.targetEnv = "virtualbox";
      deployment.virtualbox.memorySize = 4096; # megabytes
      deployment.virtualbox.vcpu = 4; # number of cpus

    };
}

{
  wordpress =
    { config, pkgs, ... }:
    { deployment.targetEnv = "virtualbox";
      deployment.virtualbox.memorySize = 4096; # megabytes
      deployment.virtualbox.vcpu = 4; # number of cpus
      deployment.virtualbox.headless = true;
    };
}

Deploying

$ nixops create ./wp.nix ./wp-vbox.nix -d wp

$ nixops create ./wp.nix ./wp-vbox.nix -d wp
$ nixops deploy -d wp

$ nixops create ./wp.nix ./wp-vbox.nix -d wp
$ nixops deploy -d wp
$ nixops info -d wp

$ nixops create ./wp.nix ./wp-vbox.nix -d wp
$ nixops deploy -d wp
$ nixops info -d wp
$ nixops ssh -d wp wordpress

`DMap`

{
  "date": "1900-01-01T12:00:00",
  "date_gmt": "1900-01-01T12:00:00",
  "modified": "1900-01-01T12:00:00",
  "modified_gmt": "1900-01-01T12:00:00",
  "password": "",
  "slug": "a",
  "status": "publish",
  "type": "post",
  "link": "http://192.168.56.101/1900/01/01/a/",
  "title": "foo",
  "content": "bar",
  "excerpt": "baz",
  "author": 1,
  "featured_media": 0,
  "comment_status": "open",
  "ping_status": "open",
  "sticky": false,
  "template": "",
  "format": "standard",
  "meta": [],
  "categories": [],
  "tags": []
}

{
  "title": "A post"
}

`Maybe`?

data Post =
  Post
  { _postDate :: Maybe LocalTime
  , _postDateGmt :: Maybe LocalTime
  , _postPassword :: Maybe Text
  -- ...
  }

A type for each use?

`DMap`

data Map k v

data DMap (key :: v -> *) (f :: k -> *)

data PostKey a where
  PostTitle  :: PostKey Text
  PostStatus :: PostKey Status
  PostAuthor :: PostKey Int
  ...

aPost :: DMap PostKey Identity
aPost =
  fromList [ PostTitle  :=> Identity "Hello Compose"
           , PostStatus :=> Identity Publish
           , PostAuthor :=> Identity 1
           ]

aPost :: Applicative f => DMap PostKey f
aPost =
  fromList [ PostTitle ==> "Hello Compose"
           , PostStatus ==> Publish
           , PostAuthor ==> 1
           ]

class Eq a => Ord a where
  compare :: a -> a -> Ordering
  ...

instance Ord (PostKey a) where
  compare :: PostKey a -> PostKey a -> Ordering
  ...

class GEq f => GCompare (key :: v -> *) where
  gcompare :: key a -> key b -> GOrdering a b

deriveGEq ''PostKey
deriveGCompare ''PostKey

`servant`

API -> ClientFunctions

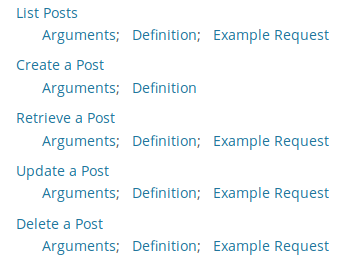

wordpress REST API for posts

type Posts =
  "posts" :> (
  List
  :<|> Auth :> List

  :<|> Auth :> Id :> Get '[JSON] PostMap

  :<|> Auth :> ReqBody '[JSON] PostMap :>
       Post '[JSON] PostMap

  :<|> Auth :> Id :> ReqBody '[JSON] PostMap :>
       Post '[JSON] PostMap

  :<|> Auth :> Id :> QueryParam "force" NoForceDelete :>
       Delete '[JSON] DeletedPost
  :<|> Auth :> Id :> QueryParam' "force" ForceDelete :>
       Delete '[JSON] DeletedPost
  )

type List = QueryParamMap ListPostsKey Identity :>
            Get '[JSON] [PostMap]
type Auth = BasicAuth "wordpress" ()
type Id = Capture "id" Int

(     listPosts
 :<|> listPostsAuth
 :<|> getPost
 :<|> createPost
 :<|> updatePost
 :<|> deletePost
 :<|> deletePostForce ) = client postsAPI

Query parameters

data ListPostsKey a where
  ListPostsContext           :: ListPostsKey Context
  ListPostsPage              :: ListPostsKey Int
  ListPostsPerPage           :: ListPostsKey Int
  ListPostsSearch            :: ListPostsKey Text
  ListPostsAfter             :: ListPostsKey LocalTime
  ListPostsAuthor            :: ListPostsKey Author
  ListPostsAuthorExclude     :: ListPostsKey (NonEmpty Author)
  ListPostsBefore            :: ListPostsKey LocalTime
  ListPostsExclude           :: ListPostsKey (NonEmpty Int)
  ListPostsInclude           :: ListPostsKey (NonEmpty Int)
  ListPostsOffset            :: ListPostsKey Int
  ListPostsOrder             :: ListPostsKey Order
  ListPostsSlug              :: ListPostsKey (NonEmpty Text)
  ListPostsStatus            :: ListPostsKey Status
  ListPostsCategories        :: ListPostsKey (NonEmpty Text)
  ListPostsCategoriesExclude :: ListPostsKey (NonEmpty Text)
  ListPostsTags              :: ListPostsKey (NonEmpty Text)
  ListPostsTagsExclude       :: ListPostsKey (NonEmpty Text)
  ListPostsSticky            :: ListPostsKey Sticky

type List = QueryParamMap ListPostsKey Identity :>
            Get '[JSON] [PostMap]

data QueryParamMap (key :: * -> *) (f :: * -> *)

data QueryParamMap (key :: * -> *) (f :: * -> *)

instance (ToQueryParamKeyValues key f, HasClient api)
      => HasClient (QueryParamMap key f :> api) where

data QueryParamMap (key :: * -> *) (f :: * -> *)

instance (ToQueryParamKeyValues key f, HasClient api)
      => HasClient (QueryParamMap key f :> api) where

  type Client (QueryParamMap key f :> api) =
    DMap key f -> Client api

data QueryParamMap (key :: * -> *) (f :: * -> *)

instance (ToQueryParamKeyValues key f, HasClient api)
      => HasClient (QueryParamMap key f :> api) where

  type Client (QueryParamMap key f :> api) =
    DMap key f -> Client api

  clientWithRoute ::
    Proxy (QueryParamMap key f :> api)
    -> Req
    -> Client (QueryParamMap key f :> api)

data QueryParamMap (key :: * -> *) (f :: * -> *)

instance (ToQueryParamKeyValues key f, HasClient api)
      => HasClient (QueryParamMap key f :> api) where

  type Client (QueryParamMap key f :> api) =
    DMap key f -> Client api

  clientWithRoute ::
    Proxy (QueryParamMap key f :> api)
    -> Req
    -> Client (QueryParamMap key f :> api)
  clientWithRoute Proxy req dm =
    let
      addPair (k, v) = appendToQueryString k (Just v)
      f ka fa req' =
        foldr addPair req' $ toQueryParamKeyValues ka fa
    in
      clientWithRoute (Proxy :: Proxy api) $
        DM.foldrWithKey f req dm

Putting it together

State


type Posts v = Map (Var Int v) StatePost

newtype WPState (v :: * -> *) =
  WPState
  { _posts :: Posts v
  }
  deriving (Eq, Show)

Inputs

newtype CreatePost (v :: * -> *) =
  CreatePost PostMap
  deriving (Show)

newtype CreatePost (v :: * -> *) =
  CreatePost PostMap
  deriving (Show)

data DeletePost (v :: * -> *) =
  DeletePost (Var Int v) (Maybe Bool)
  deriving (Show)

newtype CreatePost (v :: * -> *) =
  CreatePost PostMap
  deriving (Show)

data DeletePost (v :: * -> *) =
  DeletePost (Var Int v) (Maybe Bool)
  deriving (Show)

data UpdatePost (v :: * -> *) =
  UpdatePost (Var Int v) PostMap
  deriving (Show)

newtype CreatePost (v :: * -> *) =
  CreatePost PostMap
  deriving (Show)

data DeletePost (v :: * -> *) =
  DeletePost (Var Int v) (Maybe Bool)
  deriving (Show)

data UpdatePost (v :: * -> *) =
  UpdatePost (Var Int v) PostMap
  deriving (Show)

newtype GetPost (v :: * -> *) =
  GetPost (Var Int v)
  deriving (Show)

Creating posts

cCreatePost env@Env{..} =
  let








  in

cCreatePost env@Env{..} =
  let
    gen = Just . fmap CreatePost . genPost







  in

cCreatePost env@Env{..} =
  let
    gen = Just . fmap CreatePost . genPost
    exe (CreatePost pm) = do
      annotateShow pm
      annotateShow $ encode pm




  in

cCreatePost env@Env{..} =
  let
    gen = Just . fmap CreatePost . genPost
    exe (CreatePost pm) = do
      annotateShow pm
      annotateShow $ encode pm
      let create =
        fmap (runIdentity . (DM.! PostId))
             (createPost (auth env) pm)

  in

cCreatePost env@Env{..} =
  let
    gen = Just . fmap CreatePost . genPost
    exe (CreatePost pm) = do
      annotateShow pm
      annotateShow $ encode pm
      let create =
        fmap (runIdentity . (DM.! PostId))
             (createPost (auth env) pm)
      evalEither =<< liftIO (runClientM create servantClient)
  in

cCreatePost env@Env{..} =
  let
    gen = Just . fmap CreatePost . genPost
    exe (CreatePost pm) = do
      annotateShow pm
      annotateShow $ encode pm
      let create =
        fmap (runIdentity . (DM.! PostId))
             (createPost (auth env) pm)
      evalEither =<< liftIO (runClientM create servantClient)
  in
    Command gen exe [
      Update $ \s (CreatePost p) o ->
        posts . at o ?~ StatePost p $ s
    ]

Updating posts

cUpdatePost env@Env{..} =
  let
    gen s =
      (flip UpdatePost <$> genPost s <*>) <$> genId s
    exe (UpdatePost pId pm) = do
      annotateShow pm
      annotateShow $ encode pm
      let update =
        fmap (runIdentity . (DM.! PostId))
             (updatePost (auth env) (concrete pId) pm)
      evalEither =<< liftIO (runClientM update servantClient)
  in
    Command gen exe [
      Require $ \s (UpdatePost varId _) ->
        s ^. posts . at varId & not . null
    , Update $ \s (UpdatePost pId p) _ ->
        posts . at pId ?~ StatePost p $ s
    ]














      Require $ \s (UpdatePost varId _) ->
        s ^. posts . at varId & not . null

Getting posts

cGetPost now env@Env{..} =
  let
    gen s =
      (fmap . fmap) GetPost $ genId s
    exe (GetPost varId) = do
      let
        get = getPost (auth env) (concrete varId)
      evalEither =<< liftIO (runClientM get servantClient)
  in
    Command gen exe [
      Require $ \s (GetPost varId) ->
        s ^. posts . at varId & not . null
    , Ensure $ \_so sn (GetPost varId) p -> do
        stateMap <- eval $ (sn ^. posts) M.! varId
        annotateShow stateMap
        annotateShow p
        postsEq now stateMap p
    ]













      Ensure $ \_so sn (GetPost varId) p -> do
        stateMap <- eval $ (sn ^. posts) M.! varId
        annotateShow stateMap
        annotateShow p
        postsEq now stateMap p

Conclusion

State machine testing

Very powerful technique to test stateful systems.
App being tested doesn’t have to use Haskell or FP.

`NixOps`

Referentially transparent specification of a deployment.
Deploy in a few commands.

`DMap`

Heterogenous mapping of keys to values that preserves type safety.
Good for more “dynamic” APIs and loose specs.

`servant`

Declare your API as a type and get client functions for free.
Allows us to extend it’s API language as necessary.

Go forth and test!

References

Code

wp-tests
https://github.com/qfpl/wp-tests

Talks

Gens N’ Roses: Appetite for Reduction
https://www.youtube.com/watch?v=AIv_9T0xKEo

Property-based State Machine Testing
https://www.youtube.com/watch?v=boBD1qhCQ94

Nix

https://nixos.org/

`DMap`

dependent-map
https://hackage.haskell.org/package/dependent-map

dependent-sum
https://hackage.haskell.org/package/dependent-sum

dependent-sum-template
https://hackage.haskell.org/package/dependent-sum-template

Wordpress

WordPress book
https://github.com/WordPress/book/blob/master/Content/Part%201/2-b2-cafelog.md

WordPress REST API reference
[https://developer.wordpress.org/rest-api/reference/](https://developer.wordpress.org/rest-api/reference/**

Images

Turnstile
https://www.procontrol.hu/en/category/details/id/180145-PayGate_M3E-2_coin_operated_PGM3E_mini_tripod_turnstile_toilet_entry_with_folding_arms

Appetite for dysfunction

Intro

What and why?

Outline

WordPress

Property based testing

Example

Shrinking

State machine testing

State machines

State machine testing

Example

WordPress example

Deploying with NixOps

Nix

NixOS

NixOps

WordPress specification

Machine specification

Deploying

DMap

Maybe?

A type for each use?

DMap

servant

Query parameters

Putting it together

State

Inputs

Creating posts

Updating posts

Getting posts

Conclusion

State machine testing

NixOps

DMap

servant

References

Code

Talks

Nix

DMap

Wordpress

Images

`DMap`

`Maybe`?

`DMap`

`servant`

`NixOps`

`DMap`

`servant`

`DMap`
